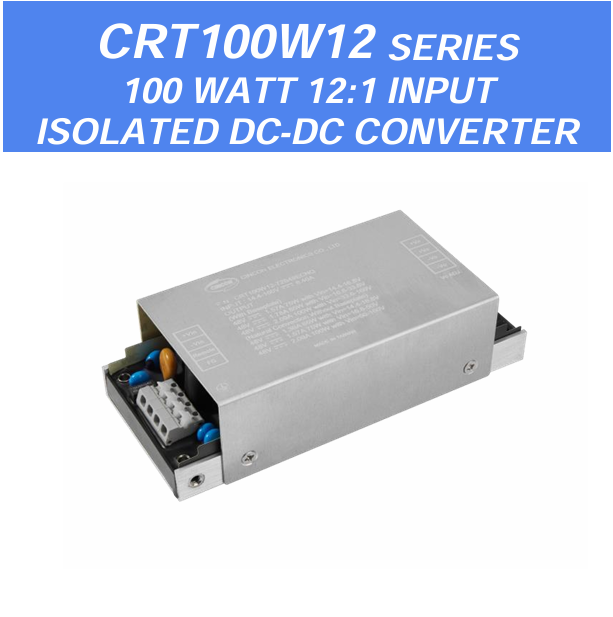

DC14-160V输入底盘安装DC-DC电源CTR100W12-72S24EC CTR100W12-72S12EC CTR100W12-72S48EC
100瓦底盘安装铁路交钥匙DC-DC转换器模块
CRT100W12 100瓦底盘安装铁路交钥匙DC-DC转换器模块
效率92%
固定开关频率
调节输出
远程开关
低空载功耗
保护（OTP/OCP/OVP/UVLO）
3000Vac输入/输出隔离
工作环境温度-40至+90°C
基板冷却
低涌入电流
输入反极性保护
高湿度环境下的半灌封设计
用于冗余使用的选项定向FET模型
无外部电容器
输出LED指示灯
5000米工作高度
|
| Part Number | Input Voltage | Output Voltage | Output Current | No load Input Current | Efficiency (%) | I/O Isolation Voltage | Package | Datasheet | Find stock | RFQ |
NEW |
| CRT100W12-72S12EC | 14~160V | 12V | 8.34A | 10mA | 91 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CTR100W12-72S24EC | 14~160V | 24V | 4.17A | 10mA | 90.5 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S48EC | 14~160V | 48V | 2.09A | 10mA | 92 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S12ECQ | 14~160V | 12V | 8.34A | 10mA | 91 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CTR100W12-72S24ECQ | 14~160V | 24V | 4.17A | 10mA | 90.5 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S48ECQ | 14~160V | 48V | 2.09A | 10mA | 92 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S12ECP | 14~160V | 12V | 8.34A | 10mA | 91 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CTR100W12-72S24ECP | 14~160V | 24V | 4.17A | 10mA | 90.5 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S48ECP | 14~160V | 48V | 2.09A | 10mA | 92 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S12ECQP | 14~160V | 12V | 8.34A | 10mA | 91 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CTR100W12-72S24ECQP | 14~160V | 24V | 4.17A | 10mA | 90.5 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S48ECQP | 14~160V | 48V | 2.09A | 10mA | 92 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S12ECN | 14~160V | 12V | 8.34A | 10mA | 91 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CTR100W12-72S24ECN | 14~160V | 24V | 4.17A | 10mA | 90.5 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S48ECN | 14~160V | 48V | 2.09A | 10mA | 92 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S12ECNQ | 14~160V | 12V | 8.34A | 10mA | 91 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CTR100W12-72S24ECNQ | 14~160V | 24V | 4.17A | 10mA | 90.5 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S48ECNQ | 14~160V | 48V | 2.09A | 10mA | 92 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S12ECNP | 14~160V | 12V | 8.34A | 10mA | 91 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CTR100W12-72S24ECNP | 14~160V | 24V | 4.17A | 10mA | 90.5 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S48ECNP | 14~160V | 48V | 2.09A | 10mA | 92 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S12ECNQP | 14~160V | 12V | 8.34A | 10mA | 91 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CTR100W12-72S24ECNQP | 14~160V | 24V | 4.17A | 10mA | 90.5 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
NEW |
| CRT100W12-72S48ECNQP | 14~160V | 48V | 2.09A | 10mA | 92 | 3000VAC | 5.09”x2.28”x1.35” |
|
|
|
